What Is Brake-by-Wire? A Safe, Smart Shift in Braking Tech

Brake-by-wire systems are showing up in more vehicles these days, and there's no reason for concern. YouTuber Jason Fenske broke down some years ago how these systems function in his "Engineering Explained" channel and the video is still very actual.

These electronic braking systems are particularly valuable in hybrid and electric vehicles, where they manage both regenerative and traditional friction braking. Even conventional cars like the C8 Corvette now utilize this technology.

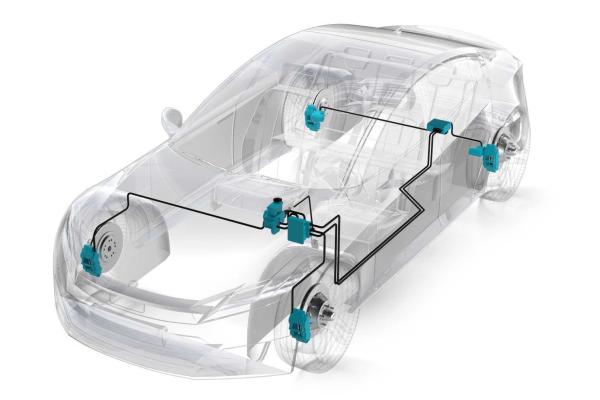

The systems work by electronically monitoring pedal position to determine braking force needed. A control unit calculates required hydraulic pressure, which an electric pump then generates to stop the vehicle—all happening instantaneously. In EVs like the Audi e-Tron, light pedal pressure may only activate regenerative braking before engaging hydraulics.

A key benefit is customizable pedal feel for different driving modes. For safety, these systems maintain a physical connection between pedal and brakes—if electronics fail, a valve opens to create a conventional hydraulic system backup.

Most drivers can't even tell the difference between traditional and brake-by-wire systems, making them both practical and reliable for modern vehicles.
