Those Tiny Wipers on Old Headlights Had a Serious Job

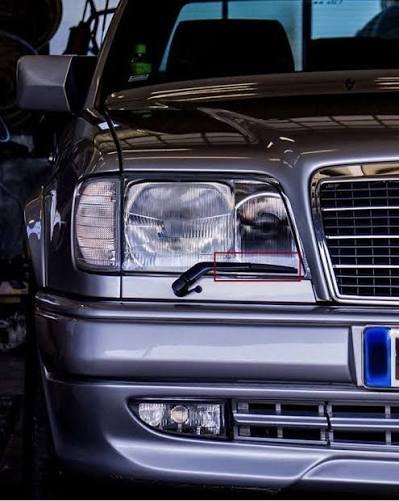

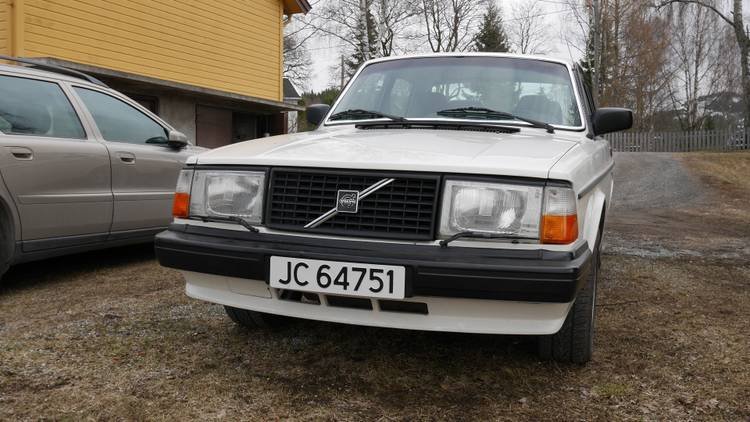

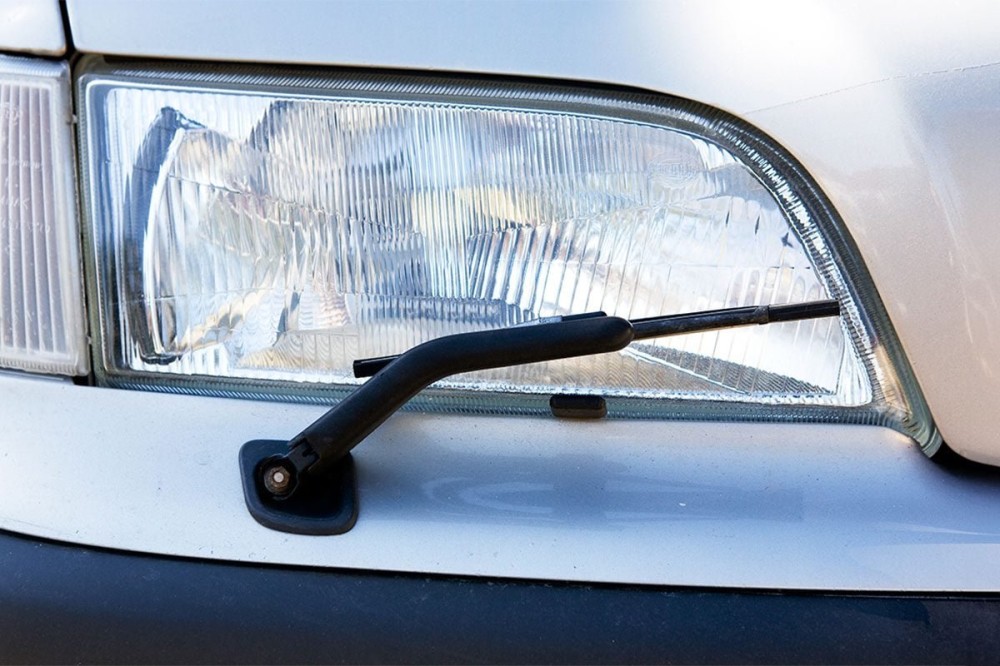

On some older cars, each headlight wears a wiper blade small enough to look like a toy. It can be an amusing sight now, particularly when one blade has stopped halfway across the lamp. The equipment had a thoroughly practical purpose.

A windshield covered in road spray is obviously a problem because the driver can see it. Headlights collect the same sort of grime more quietly. The driver may not notice the film building on the lamps, even as less useful light reaches the road. In a place with long, dirty winters, cleaning the headlights was a visibility feature worth engineering.

Saab says headlamp wipers appeared on its cars in 1971. The idea remained in use for decades. A 2000 Saab 9-3 technical description shows a small wiper beneath each headlight, triggered when the driver operated the windshield washers. After washing stopped, the little motors completed their strokes and parked the blades.

The mechanism had to contend with the very weather it was designed to handle. Saab fitted overload protection because a blade frozen to the headlight could place too much load on its motor. The service description even notes that a very short wash could leave a blade away from its normal parked position; running the wash longer would allow it to return. There is a surprising amount going on behind two tiny strips of rubber.

The cleaning stayed, even as the blades changed

A later Saab 9-3 workshop description shows a different approach: washer jets mounted on telescopic cylinders in the bumper, extending toward the lamps when the system operates. The car still cleans its headlights, but it no longer needs a little wiper motor and arm beneath each one.

That shift helps explain why the old blades became less familiar. Their absence does not always mean the manufacturer abandoned headlight cleaning. Some vehicles use washer jets instead, while others have no automatic headlight-cleaning equipment. On a 2020 Volvo V90 Twin Engine, for example, optional headlight washers operate at intervals when the lights are on; the system stops washing the headlights when fluid is low so the windshield supply takes priority.

The miniature blades are easy to remember as an old-car eccentricity. They make more sense on a dark road after a day of slush and spray, when a clean beam matters considerably more than how peculiar the front of the car looks.
